Rexroth hydraulic pumps are known worldwide for precision engineering and long service life. But even the best hydraulic pump cannot perform properly if it is installed incorrectly. In Indian factories, many pump issues start not because of design faults, but due to avoidable installation mistakes.
At Infinity Hydraulic Pumps, we regularly support industries across India with genuine hydraulic pumps, motors, valves, cylinders, and power packs. Since 2020, our team of experienced hydraulic engineers has inspected many Rexroth pump installations. A common pattern we see is that small errors during installation slowly damage pump performance and reduce system reliability.
This article explains the most common installation mistakes that affect Rexroth hydraulic pump performance—and how they can be prevented at the installation stage itself.

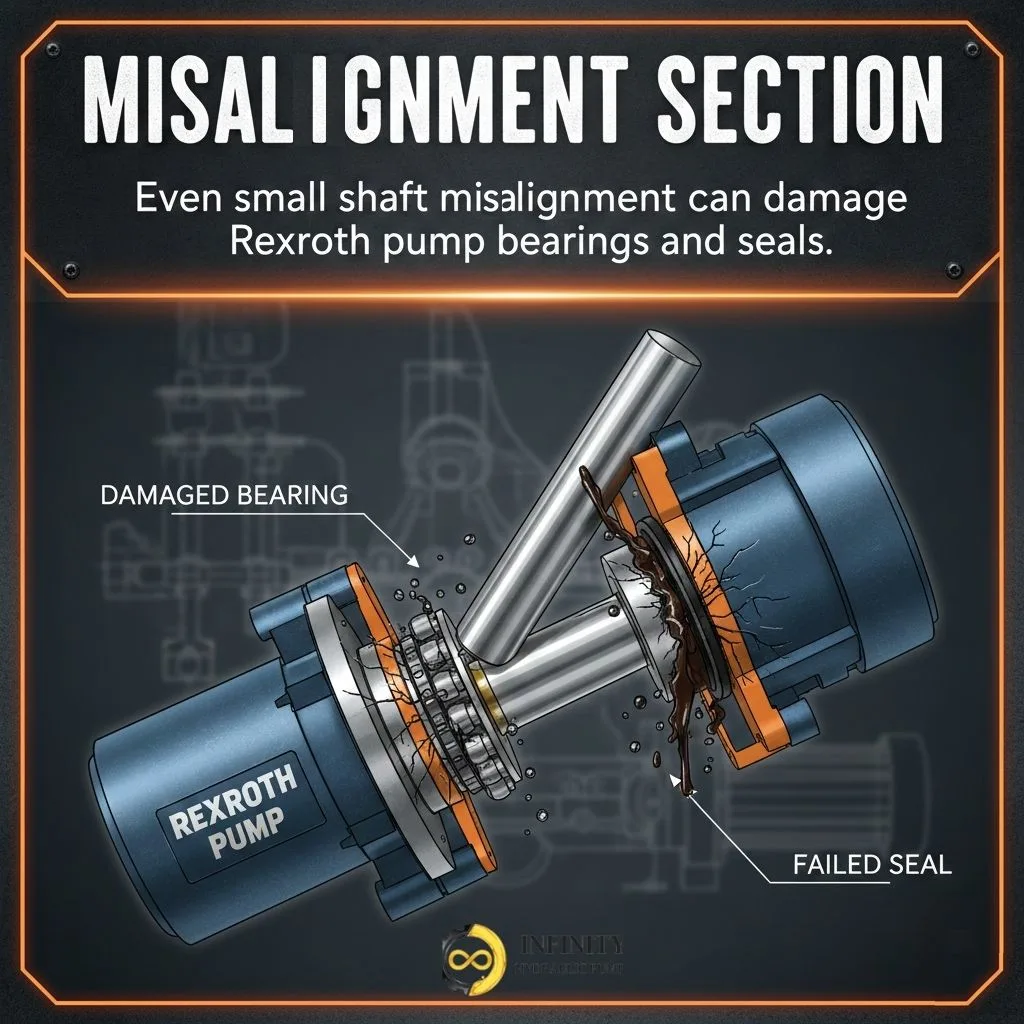

1. Pump and Motor Misalignment
Why misalignment is a serious issue
One of the most frequent installation errors is incorrect alignment between the pump shaft and drive motor. Even a small angular or parallel misalignment creates uneven load on the pump bearings.
In Rexroth axial piston and vane pumps, this results in:
- Early bearing wear
- Shaft seal leakage
- Increased noise during operation
- Reduced pump life under continuous load
Many installers rely only on visual alignment, which is not accurate enough for high-precision pumps.
What should be done at installation stage
- Always use proper coupling alignment tools
- Ensure foundation plates are flat and rigid
- Check alignment again after tightening bolts
At Infinity Hydraulic Pumps, our technicians use modern diagnostic and alignment tools to ensure pumps are correctly aligned before commissioning.
2. Suction Line Design and Installation Problems
How suction line mistakes harm Rexroth pumps
Rexroth pumps are highly sensitive to suction conditions. Poor suction line installation leads to cavitation, which silently damages internal components.
Common suction line errors include:
- Undersized suction pipes
- Sharp bends near pump inlet
- Air leakage through loose joints
- Excessive suction height
These issues reduce oil flow to the pump, causing internal vacuum pockets that damage pistons and vanes.
Installation-level prevention
- Use recommended pipe diameter as per pump capacity
- Keep suction line short and straight
- Avoid elbows close to the inlet port
- Ensure airtight connections
Our engineering team at Infinity Hydraulic Pumps reviews suction layouts before installation to avoid long-term performance issues.
3. Using Incorrect Hydraulic Oil During Installation
Why oil selection matters from day one
Hydraulic oil is not just a lubricant—it is a power transmission medium. Using the wrong oil grade at installation can immediately affect Rexroth pump efficiency.
Installation-time oil mistakes include:
- Incorrect viscosity grade
- Oil not compatible with pump seals
- Low-quality or contaminated oil used during initial filling
These errors increase internal leakage, heat generation, and friction.
Correct installation practice
- Always follow Rexroth-recommended oil viscosity range
- Use clean, filtered oil during system filling
- Ensure oil cleanliness before first startup
Infinity Hydraulic Pumps guides customers in selecting the right hydraulic oil for Indian operating conditions, including temperature and duty cycle.

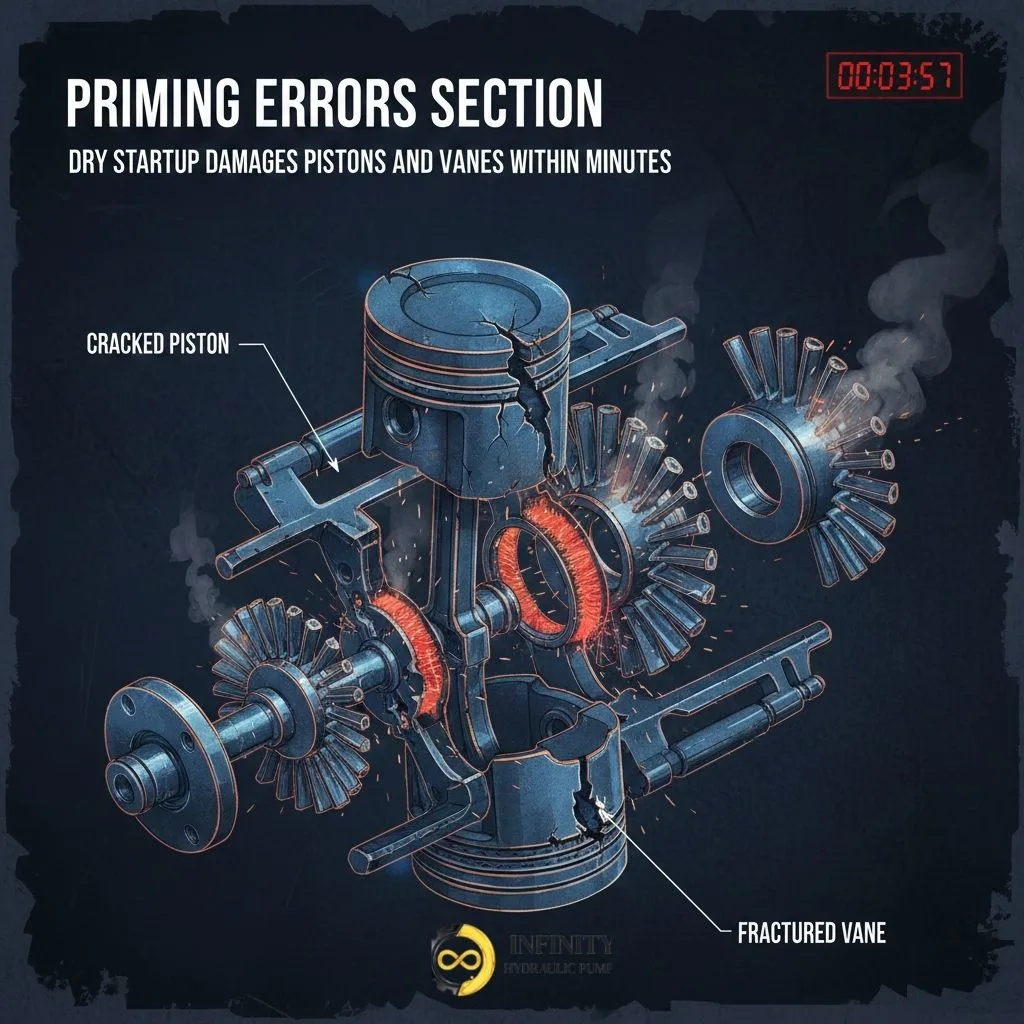

4. Improper Pump Priming Before Startup
What goes wrong when priming is ignored
Many pump failures happen in the first few minutes after startup due to dry running. Rexroth pumps must be properly primed before rotation.
Incorrect priming leads to:
- Metal-to-metal contact
- Instant wear of pistons or vanes
- Scoring of internal surfaces
This damage cannot be reversed, even if the pump runs later.
Installation-time solution
- Fill pump casing with hydraulic oil before startup
- Ensure suction line is fully oil-filled
- Rotate pump manually if recommended
Our technicians at Infinity Hydraulic Pumps ensure safe priming procedures are followed during installation and commissioning support.
5. Ignoring Vibration and Mounting Stability
Why vibration is not just a noise problem
Excessive vibration during operation often starts with poor mounting during installation. Rexroth pumps are precision units and require stable foundations.
Common installation mistakes include:
- Flexible or uneven base plates
- Loose mounting bolts
- Pump mounted too close to vibrating structures
Over time, vibration causes:
- Fatigue cracks
- Seal failure
- Connection loosening
Correct installation approach
- Use rigid mounting surfaces
- Torque bolts as per specifications
- Isolate pump from external vibration sources
Infinity Hydraulic Pumps supports customers with proper foundation and mounting guidance to protect pump performance in long-term operation.
6. Overlooking Installation Checks Before Commissioning
Small checks that make a big difference
Rushing installation without final checks is another common mistake. Many issues could be avoided with basic verification before startup.
Key checks often missed:
- Direction of rotation
- Correct port connections
- Proper tightening of fittings
- Air bleeding from the system
Skipping these steps leads to poor efficiency and unnecessary troubleshooting later.

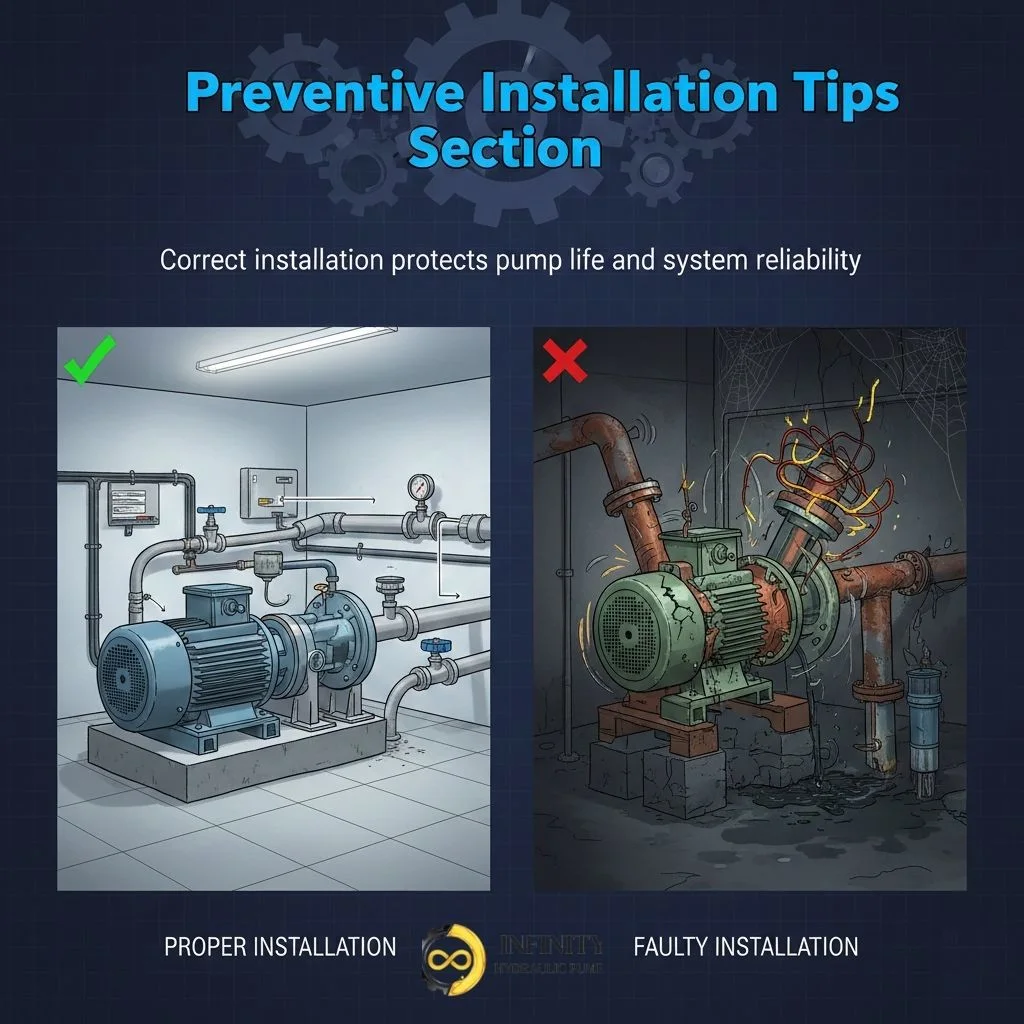

Preventive Installation Tips from Infinity Hydraulic Pumps
Based on real field experience across Indian industries, our team recommends:
- Always involve a trained hydraulic engineer during installation
- Follow Rexroth technical manuals strictly
- Never treat installation as a routine mechanical job
- Document installation parameters for future reference
Since January 2020, Infinity Hydraulic Pumps has supported factories, machine builders, and plant owners with reliable supply, genuine parts, and technical installation support from NCR. Our engineers understand axial piston pumps, vane pumps, servo systems, and complex hydraulic circuits used in Indian manufacturing.
Final Thoughts
Rexroth hydraulic pumps are built for accuracy and durability—but installation quality decides actual performance. Most pump problems seen in Indian plants are not design-related; they are the result of avoidable installation errors.
By focusing on correct alignment, proper suction design, correct oil selection, safe priming, and vibration control, industries can get full value from their Rexroth hydraulic systems.
For expert guidance on Rexroth pump installation, selection, or technical support, Infinity Hydraulic Pumps remains a trusted partner for industries across India.
